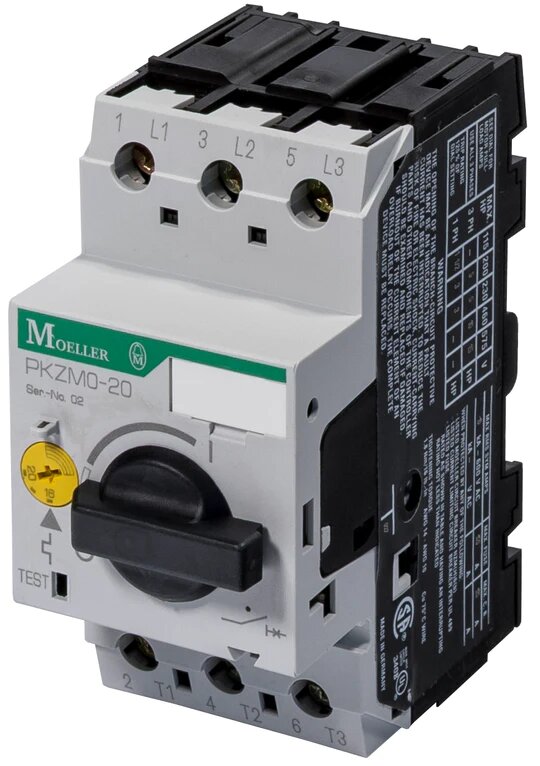

The Klockner Moeller PKZM0-20 is a
3 phase thermal-magnetic motor protective device
incorporating adjustable bimetal trips for motor
overload protections and magnetic trips to de-energize
the motor circuit in case of a short circuit.
Product Specifications
| Product Attribute | Attribute Value |
| Rated Un-interrupted Current | 20 |
| Setting:Overload Releases | 16 - 20 |
| Setting:Short Circuit Releases | 280 |
| Maximum HP Three phase:200V | 5 |
| Maximum HP Three phase:240V | 5 |
| Maximum HP Three phase:480V | 10 |
| Maximum HP Three phase:600V | 15 |
| Catalog No. | PKZM0-20 |
