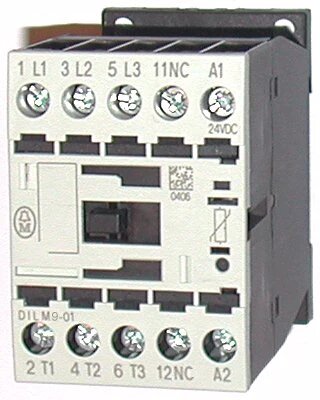

The Klockner Moeller DILM9-01 (24VDC)
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 3 HP at 230V
and 5 HP at 460V. It comes with
1NC auxiliary contact.
Conforms to IEC 60947
Product Specifications
| Product Attribute | Attribute Value |
| Amp ratings : AC1 | 20 |
| Three phase HP ratings : 230V | 3 |
| Three phase HP ratings : 460V | 5 |
| Auxiliary contacts : NO | 0 |
| Auxiliary contacts : NC | 1 |
| Coil Voltage / AC Voltage | 24VDC |
| Catalog No. | DILM9-01(24VDC) |
